Alloy 904L stainless steel cladded reactor
904L reactors/ SS 904L reactors | 904L stainless steel reactors | 904L clad steel reactor/ 904L clad reactor/Alloy 904L autoclave reactors/ Alloy 904L reactors/ 904L cladded reactor Alloy 904L grade stainless steel is unlike any other steel. Due to its extra amounts of chromium, molybdenum, nickel and copper, 904L steel features superior resistance to corrosion, rust and acids.
- HXCHEM
- CHINA
- 80 days after payment
- 10 SETs/MONTH
Details

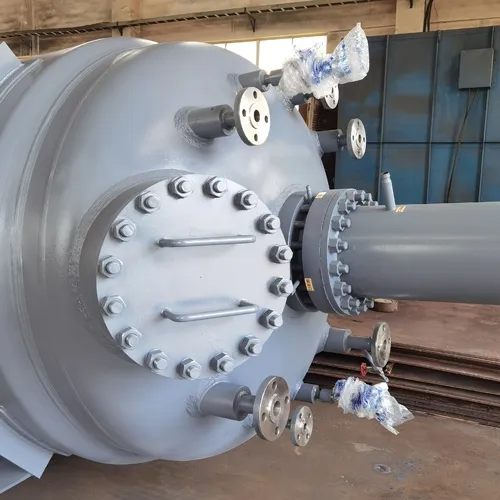

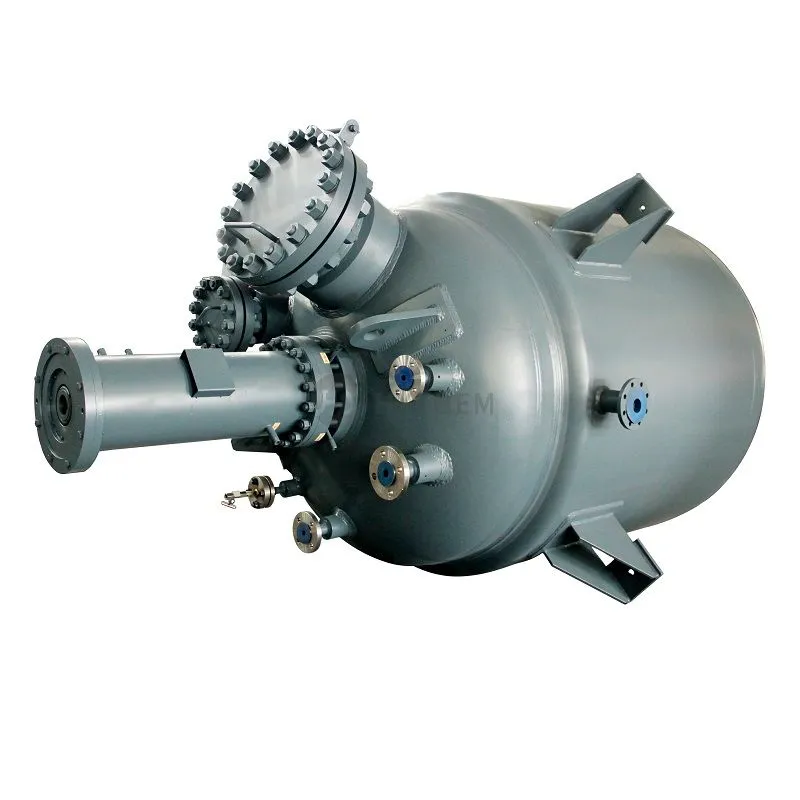

Alloy 904L stainless steel cladded autoclave reactors
Introduction
Alloy 904L grade stainless steel is unlike any other steel. Due to its extra amounts of chromium, molybdenum, nickel, and copper, 904L steel features superior resistance to corrosion, rust, and acids.
Volume: 1000-500000liters.
Design pressure: maximum up to 200bar
Design temperature: Up to 300℃
Material：Alloy 904L .
Alloy 904L reactor | Alloy clad steel reactor | 904L clad steel reactor | 904L clad reactors | 904L stainless steel reactors | 904L reactor vessels | 904L pressure vessels
904L High alloy industrial chemical reactor | 904L stainless steel reactor
Construction of material（Alloy 904L）
With its highly alloyed chemistry — 25% nickel and 4.5% molybdenum, 904L provides good chloride stress corrosion cracking resistance, pitting and general corrosion resistance.
Alloy 904L was originally developed to withstand environments containing dilute sulfuric acid. It also offers good resistance to other inorganic acids such as hot phosphoric acid as well as most organic acids.
The reactor is made of 904L stainless steel clad steel plates: base metal – plates of ASME SA-516 Gr.70 with 12-100 mm thickness, cladding metal – plates of stainless steel 904L (ASME SA-240 Gr. N08904) with 3-6 mm thickness.
CORROSION RESISTANCE
Good resistance to uniform corrosion.
Provides excellent resistance to dilute sulfuric acid, phosphoric acid and most organic acids.
Resistance to chloride stress corrosion cracking (SSC) increases.
APPLICATION
Chemical process equipment for the production of sulfuric, phosphoric, inorganic and organic acids and the production of phosphate-based fertilizers.
Customizations
If there has special process requires，HXHCEM will also customize for you！
Pls list your basis process parameters like follows：
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material (Solid or cladding?)
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating Jacket or not? Jacket type?
7. Internal cooling coil or not, exchange area?
8. Your other requests
9. Design code requirements?
......Contact us
We like to help you to accomplish your plans.
